Intensive Dampener

 Intensive Dampener
 Intensive Dampener  Intensive Dampener  Intensive Dampener  Intensive Dampener

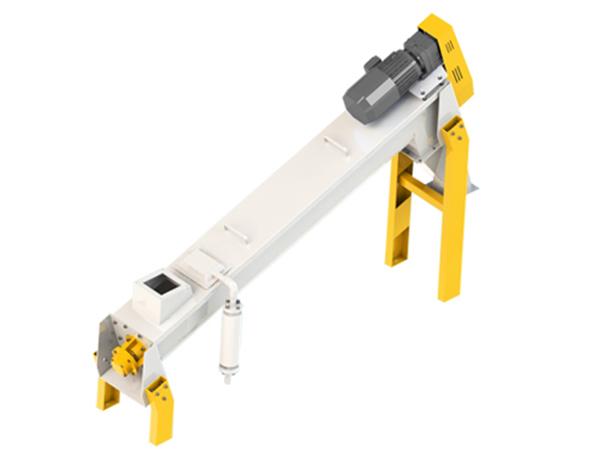

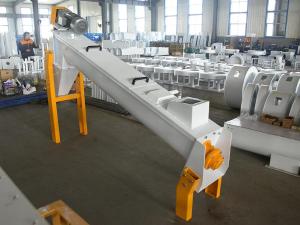

The FZSHB series intensive dampener is a frequently used device in flour mills, and it is adopted to guarantee that the moisture content of wheat meets the requirements of following procedures. As a continuous and highly efficient machine, this product is designed to add exact amount of water into the wheat, and then the water is uniformly distributed with the help of a screw conveyor.

Technical Parameters
Model Power (kW) Max. water Capacity Dimension
FZSHB25*240 2.2 4 6-10 2780*610*1830
FZSHB32*250 3 4 10-18 2885*680*1935
FZSHB40*250 4 4 18-25 2910*790*1990
Features

1. Excellent Moisture Addition Performance
During work, wheat moves into the chamber through the feeding pipe, and simultaneously, water flows into the spray pipe via pipelines. Then, the spray pipe will spray water to the wheat inside the chamber.

For the screw conveyor, its screw blades are arranged in a helical manner on the shaft, and some of the materials will move forward when the blades are stirring. However, the chamber is fixed with a tilting angle. So, as a result of the gravity, some materials will drop down and then mixed with the forward-moving wheat to realize full contact between wheat kernels. With the gentle dampening process, the water is homogeneously distributed, and the moisture addition rate could reach up to 4% in a single pass.

2. Low Maintenance Requirement
The screw blades of our intensive dampener are manufactured by wear-resisting steel plates, so they are also resistant to wear and tear.

3. Bearing base and bearing cover are HT200, the deceleration motors are produced by Xingguang (Foshan) (or equivalent quality products); the motor protection grade is IP55, the insulation grade is F; the bearings used are Harbin adjustable roller bearings;

4. Double sealing structure achieving better sealing effect.

Related Names
Moisturizing Conditioner | Flour Mill Mixing Machine | Wheat Blending Machine
