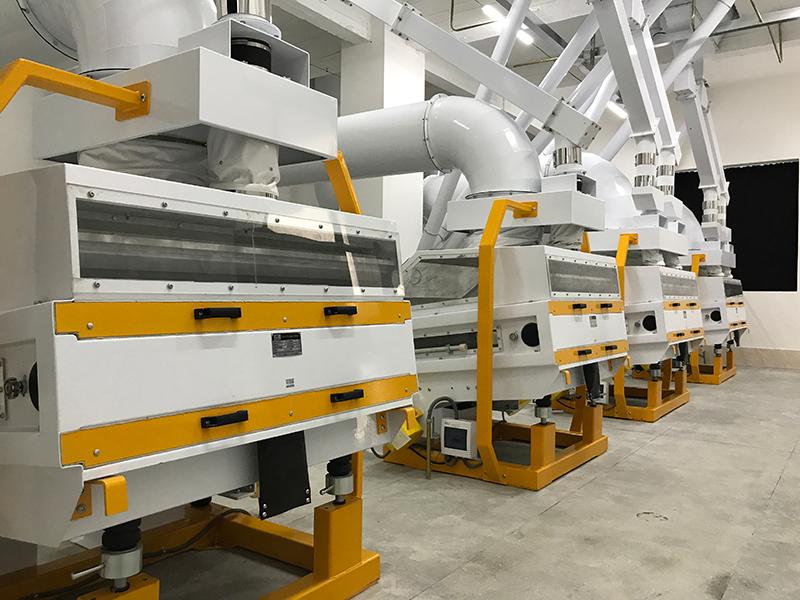

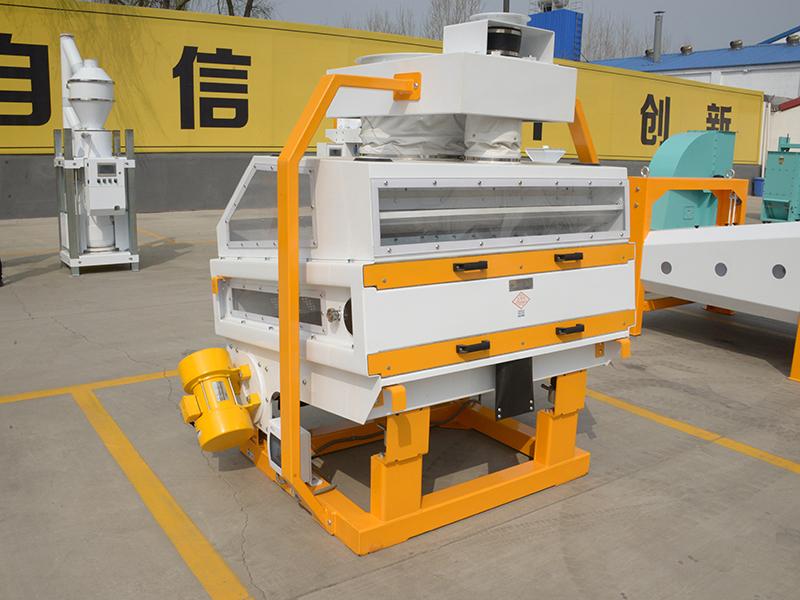

Gravity Destoner

 Gravity Destoner
 Gravity Destoner  Gravity Destoner  Gravity Destoner  Gravity Destoner

The TQSFB gravity destoner is employed for the continuous stone removing process, and it also fits for the classification of heavy and light grains.

PDF download
Technical Parameters
Model Throughput (t/h) Power (kW) Overall dimensions (L×W×H, mm)
TQSFB60 4-8 2*0.25 1200*1400*1800
TQSFB80 6-12 2×0.25 1400×1400×1800
TQSFB100 8-16 2×0.25 1600×1400×1800
TQSFB125 13-22 2×0.3 1850×1400×1800
TQSFB150 16-28 2×0.3 2100×1400×1800
Features

1. The upper and lower sieve grids and screen body are fixed by bolts to ensure consistence between the sieve grids and the sieve body.

2. The external vibration motor is connected with the screen body through bolts, so that not only is it convenient for maintenance, but also ensures the consistency of the vibration direction angle.

3. Reasonable vibration direction and optimized outlet duct can ensure that material will not flow out of the stone outlet when the machine is turned on or off.

4. Engine-driven arc welding process is used to weld the studs and nuts at joints of certain parts in order to ensure perfect appearance based on maintaining structural strength.

5. The upper rear section is made of punched galvanized sieve plates, and the upper and lower layers are woven with wear-resistance 65Mn steel of 1 mm diameter.

6. The gravel outlet is supported by adjustable spring, and the handle can be adjusted conveniently to adjust the inclination of the screen surface.

7. Installing differential pressure gauge to monitor the negative pressure of working condition of the gravel-removing machine.

8. The equipment’s surface treatment: the steel used is either treated with phosphating or shot blasting, and then spray painting or glazed finishing.

Wide Application

The gravity destoner suits a great many of applications. For example, it is commonly adopted for the processing of wheat, rye, maize, oats, buckwheat, barley as well as millet, and it also fits for breweries, distilleries and ethanol production plants.

Working Principle

There is a big difference in the suspended speed between grains and high-density matters such as stones, metal and glass, while the suspended speed for heavy and light grains also varies. Based on these, the mixed heavy impurities will be separated from grains, and effective gradation between heavy and light grains is achieved.

Related Names
Grain Grading Machine | Paddy Separator | Gravity Grain Cleaner

Inquiry Form
Other products
    1. Wheat Brusher
    2. Wheat Brusher

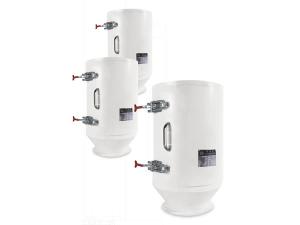

    1. Magnetic Separator
